TINOX TPW-716 White Hybrid Pigment With Brightness L* ≥ 96.0 Excellent Gloss And PH 6.5-8.5 For High-Performance Coatings

Brand Name:	TINOX
Model Number:	TPW-716
MOQ:	24MT
Price:	Negotiable

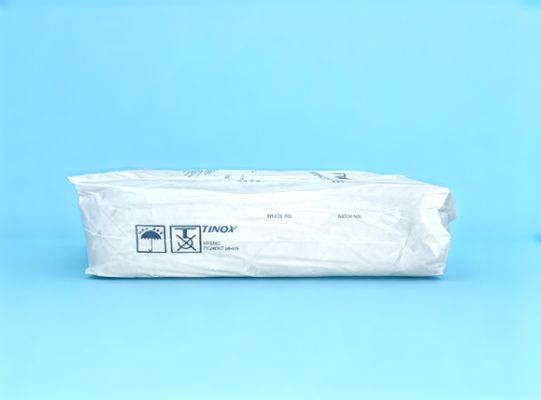

Packaging Details:	25KG per bag
Payment Terms:	L/C,T/T,D/P

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Certification:

REACH

Document:

Certified:

REACH

Applications:

Water Based And Solvent Based Paints & Coatings, Architectural Paints, Industrial Paints&coatings

Posttreatment:

Al, Zr, P, Organic

6.5-8.5

Dispersibility Hegman Scale:

Rel. Humidity(105℃):

Supply Ability:

1000MT Monthly

Highlight:

Excellent Gloss Hybrid Pigment White

Brightness Hybrid Pigment White

Product Description

TINOX TPW-716 Hybrid Pigment White

Premium performance hybrid pigment engineered for superior coatings. TPW-716 combines rutile-type TiO₂ with ultra-fine functional fillers to enhance light scattering efficiency while reducing TiO₂ consumption without compromising optical performance.

Exceptional Performance Advantages

Superior Optical Properties
Brightness L* ≥ 96.0 with bluish undertone for exceptional whiteness and visual appeal

Excellent Gloss Development
Enhanced surface reflectivity and gloss stability for premium finishes

Strong Hiding Power
Outstanding coverage with reduced pigment loading requirements

Enhanced Durability
Improved abrasion resistance, weather resistance, and coating film hardness

Excellent Dispersion
Hegman ≥ 6.5 for easy incorporation and reduced processing time

Environmental Benefits
Lower CO₂ emissions per unit compared to pure TiO₂

Technical Specifications

Parameter	Value
TiO₂ content	≥74.0%
Rutile content	≥99.0%
Brightness L*	≥96.0
Oil absorption	≤20 g/100g
Relative Humidity (105°C)	≤0.5%
Post-treatment	Al, Zr, P, organic
pH value	6.5-8.5

Performance Validation

Whiteness index nearly matching premium TiO₂ pigment R-2160
Superior performance compared to standard TiO₂ pigment R-2140
Excellent opacity levels comparable to pure TiO₂ pigments
Outstanding gloss development for high-quality finishes

Recommended Formulation

High-Gloss Water-Based Acrylic Enamel (Based on Test Data)

Component	Function	Content (%)
Deionized Water	Solvent	18.0
Dispersing Agent	Pigment dispersion	0.6
Wetting Agent	Surface tension reduction	0.3
TINOX TPW-716	Primary pigment	22.0
Acrylic Emulsion (50%)	Binder	45.0
Coalescing Agent	Film formation	2.5
Defoamer	Foam control	0.4
Rheology Modifier	Viscosity control	0.8
Preservative	Biostability	0.2
Ammonia (28%)	pH adjustment	0.2
Water (adjustment)	Final adjustment	10.0

Processing Instructions:

Add water, dispersing agent, and wetting agent to mixing vessel
Slowly add TINOX TPW-716 under moderate agitation (800-1000 rpm)
Increase agitation speed to 1500-2000 rpm for 15-20 minutes until Hegman fineness ≥6.5 is achieved
Reduce speed and slowly add acrylic emulsion
Add coalescing agent, defoamer, rheology modifier, and preservative
Adjust pH to 7.5-8.5 with ammonia solution
Add remaining water to achieve desired viscosity
Filter and package

Expected Performance (Based on Tinox Test Data):

Whiteness Index: ≥96.5
Gloss (60°): ≥85 GU
Contrast Ratio: ≥0.98
Yellowness Index: <1.5
PVC: ~25%

Note: This formulation is based on test data from the TINOX TPW Series brochure, specifically the acrylic enamel paint tests with 75% emulsion content (PVC = 25%).

Factory Images

Factory Exterior

Lab

Certifications & Reports

REACH

SGS

ISO 9001
