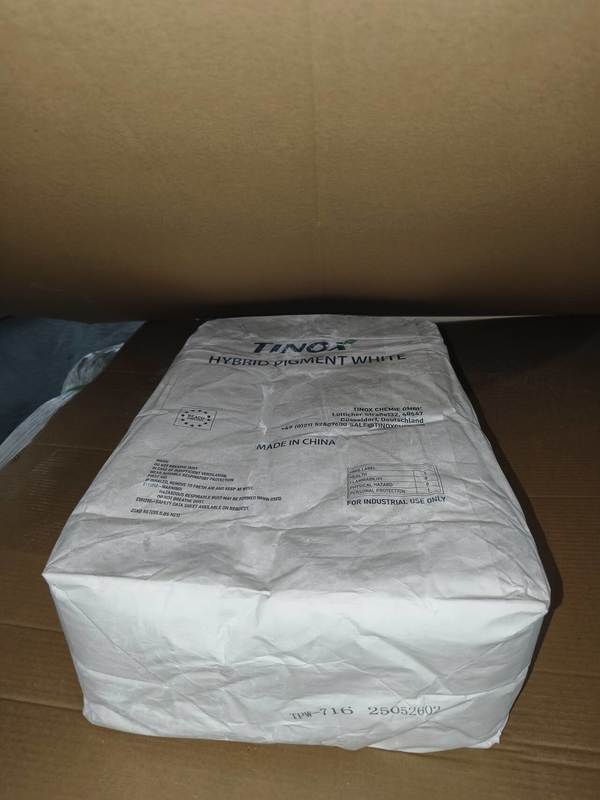

TINOX TPW-716 Hybrid Pigment White

Brand Name:	TINOX
Model Number:	TPW-716
MOQ:	10
Packaging Details:	25kG per bag
Payment Terms:	T/T,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

CHINA

Document:

Supply Ability:

EXCELLENT

Highlight:

Hybrid Pigment White

TPW-716 Hybrid Pigment White

Product Description

TINOX TPW-716 Hybrid Pigment White

Premium Performance Hybrid Pigment for Superior Coatings

TINOX TPW-716 is an advanced hybrid pigment based on rutile-type TiO₂, engineered specifically for high-performance paint and coating applications. Through a proprietary manufacturing process that combines premium TiO₂ pigment components with ultra-fine functional fillers, TPW-716 enhances light scattering efficiency while reducing TiO₂ consumption without compromising optical performance.

Exceptional Performance Advantages

Superior Optical Properties Brightness L* ≥ 96.0 with bluish undertone for exceptional whiteness and visual appeal
Excellent Gloss Development Enhanced surface reflectivity and gloss stability for premium finishes
Strong Hiding Power Outstanding coverage with reduced pigment loading requirements
Enhanced Durability Improved abrasion resistance, weather resistance, and coating film hardness
Excellent Dispersion Hegman ≥ 6.5 for easy incorporation and reduced processing time
Environmental Benefits Lower CO₂ emissions per unit compared to pure TiO₂

Technical Specifications

Parameter	Value
TiO₂ content	≥74.0%
Rutile content	≥99.0%
Brightness L*	≥96.0
Oil absorption	≤20 g/100g
Relative Humidity (105°C)	≤0.5%
Post-treatment	Al, Zr, P, organic
pH value	6.5-8.5

Performance Validation

Whiteness index nearly matching premium TiO₂ pigment R-2160
Superior performance compared to standard TiO₂ pigment R-2140
Excellent opacity levels comparable to pure TiO₂ pigments
Outstanding gloss development for high-quality finishes

Recommended Formulation High-Gloss Water-Based Acrylic Enamel (Based on Test Data)

Component	Function	Content (%)
Deionized Water	Solvent	18.0
Dispersing Agent	Pigment dispersion	0.6
Wetting Agent	Surface tension reduction	0.3
TINOX TPW-716	Primary pigment	22.0
Acrylic Emulsion (50%)	Binder	45.0
Coalescing Agent	Film formation	2.5
Defoamer	Foam control	0.4
Rheology Modifier	Viscosity control	0.8
Preservative	Biostability	0.2
Ammonia (28%)	pH adjustment	0.2
Water (adjustment)	Final adjustment	10.0

Processing Instructions:

Add water, dispersing agent, and wetting agent to mixing vessel
Slowly add TINOX TPW-716 under moderate agitation (800-1000 rpm)
Increase agitation speed to 1500-2000 rpm for 15-20 minutes until Hegman fineness ≥6.5 is achieved
Reduce speed and slowly add acrylic emulsion
Add coalescing agent, defoamer, rheology modifier, and preservative
Adjust pH to 7.5-8.5 with ammonia solution
Add remaining water to achieve desired viscosity
Filter and package

Expected Performance (Based on Tinox Test Data):

Whiteness Index: ≥96.5
Gloss (60°): ≥85 GU
Contrast Ratio: ≥0.98
Yellowness Index: <1.5
PVC: ~25%

Note: This formulation is based on test data from the TINOX TPW Series brochure, specifically the acrylic enamel paint tests with 75% emulsion content (PVC = 25%).
